PRODUCT
Product
We are dedicated to make world-class
products and working for customer satisfaction.
Air Cleaning
Products
- Refrigeration Air Dryer
- Adsorption Air Dryer
- Filter
- After cooler
It is a device that applies the fact that the temperature and the amount of saturated water
vapor are proportional by forcibly cooling the air that is the moisture contained in the gas
to make water condensed and removed.

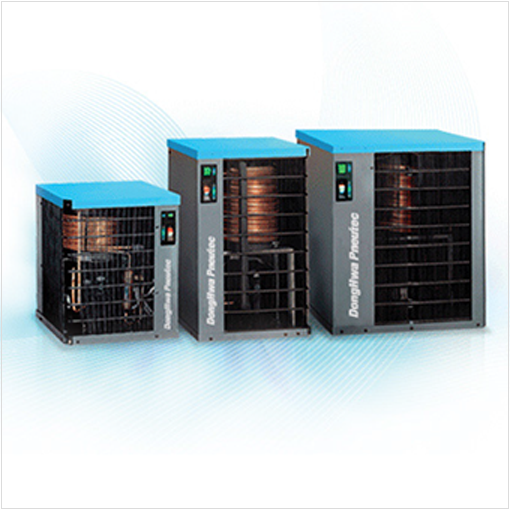

Small Refrigeration Air Dryer
It provides incredible performance and high product reliability, with a target of 0% defect rate by using waste heat to condense refrigerant for the first time to increase energy efficiency, and removing the fan motor of the condenser that may cause malfunction and noise. It is the best product for a small air compressor of 15 horsepower or less that combines economical efficiency in installation and maintenance, patented technology from 32 countries around the world, and since its first launch in 2003, it has been a bestseller recognized by customers around the world as well as in Korea.

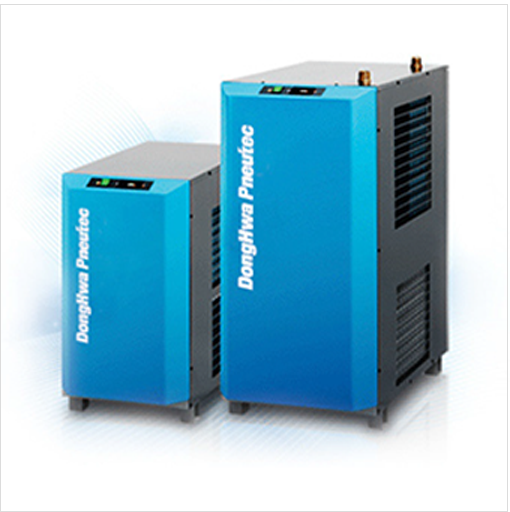

Medium/large Refrigeration Air Dryer
Generally refrigeration air dryers are connected by piping with a separator, a richer, and an evaporator separated from each other, but the HXK series integrates this into an integrated structure, thereby it has high internal/external space efficiency. In addition, it gives a stable dew point through rapid heat transfer even during load interlocking because residence time of the stainless steel plate heat exchanger is short.

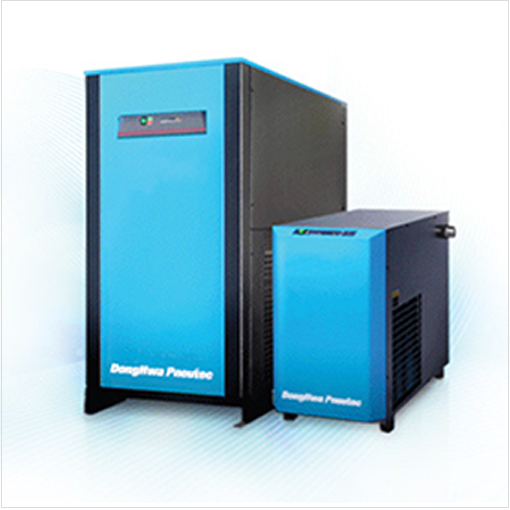

All-in-one High-Temperature Refrigeration Air Dryer
With a compact design that includes an aftercooler, air dryer, separator, drain valve, and front/rear filter, it is a high-performance product that is excellent in minimizing installation space and reducing cost, and can be used in harsh environments at high temperatures. It is even more improved product for its performance and lifespan as it uses a stainless steel plate heat exchanger with excellent performance and durability of the pure copper air pipe.
CONTACT US
Purchasing original equipment
- Sales Team of Dongwha Pneutec
- A/S Team of Dongwha Pneutec
- sales@dhkomp.co.kr
- service@dhkomp.co.kr
Quotation and other inquiries
- TEL
- FAX
- 051-974-4800
- 051-974-4896
A temperature below zero dew point under pressure may be secured by using a chemical
adsorbent (Molecular Sieves, Activated Alumina gel).

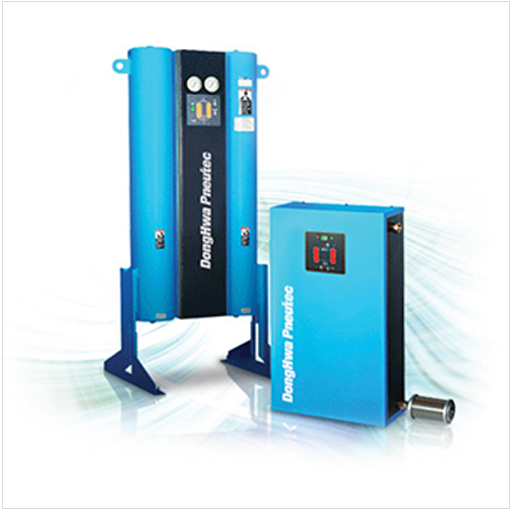

Non-heat adsorption air dryer
It is a non-heating type product that uses a part of the dried compressed air for regeneration and two vessels are automatically and repeatedly replaced and dry compressed air is continuously supplied. Built-in stainless steel VESSEL and high-performance shuttle valve increases durability and maintains reliability with a simple structure that is easy to maintain.

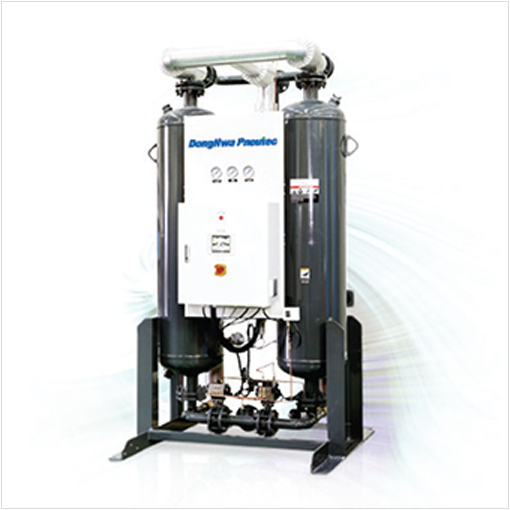

Heater External Adsorption Type Air Dryer
It is an economical system that consumes less air as it regenerates the adsorbent by heating some of the outlet dry air with a heater installed outside the vessel and using it as regeneration air. It provides excellent durability and reliability as parts are selected carefully and designed in detail for the best function and high reliability.

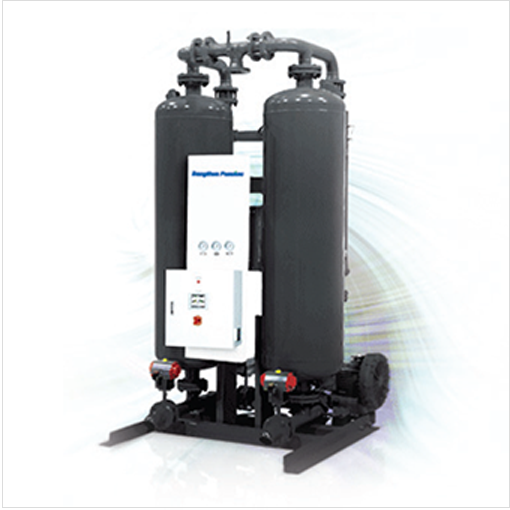

Blower Purge Adsorption Type Air Dryer
It is a blower purge type heating adsorption air dryer that sucks in the outside air with a blower which heats it with a heater, and uses it as purge air. It is a very economical product that can reduce the overall operating cost of the product as there is almost no loss of compressed air compared to normal heated or non-heated adsorption air dryers, so it is mainly used for large-size air dryers with large capacity of compressed air.
CONTACT US
Purchasing original equipment
- Sales Team of Dongwha Pneutec
- A/S Team of Dongwha Pneutec
- sales@dhkomp.co.kr
- service@dhkomp.co.kr
Quotation and other inquiries
- TEL
- FAX
- 051-974-4800
- 051-974-4896
It is a filter that removes various common impurities, oil, and odors contained in
compressed air, so you can select the type of filter according to the function and purpose
of use. (For high-pressure filters, please ask us)

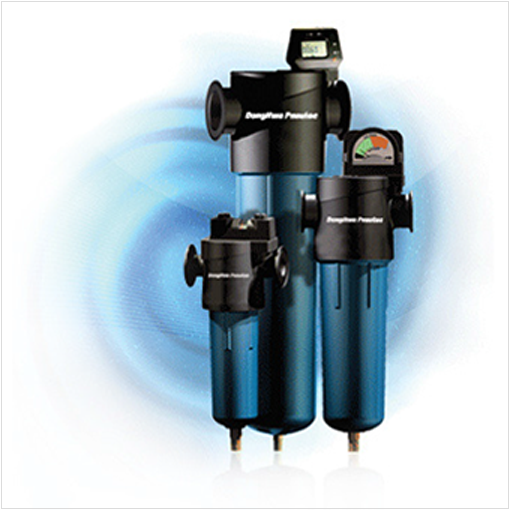

Airline Filter
Under the premise that if the performance of the filter is not well, no matter how expensive the air dryer is, it cannot perform its functions, this product harmonizes the best technology that minimizes the differential pressure of the filter by applying a patented element to realize excellent filtering performance.
CONTACT US
Purchasing original equipment
- Sales Team of Dongwha Pneutec
- A/S Team of Dongwha Pneutec
- sales@dhkomp.co.kr
- service@dhkomp.co.kr
Quotation and other inquiries
- TEL
- FAX
- 051-974-4800
- 051-974-4896
It is an auxiliary device for compressed air system that supplies at a stable temperature by
cooling high-temperature and humid compressed air effectively and condensing and removing
moisture.

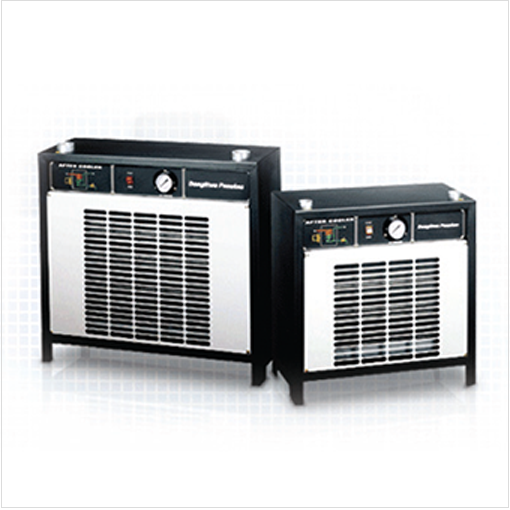

After cooler
It is an essential auxiliary device for a compressed air system that supplies at a stable temperature by cooling high-temperature and humid compressed air primarily and condensing and removing moisture effectively.
