Product
We are dedicated to make world-class products and working for customer satisfaction.
Air Compressor
Products

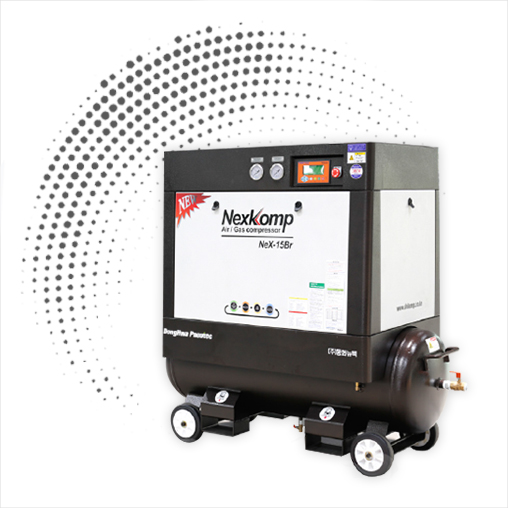

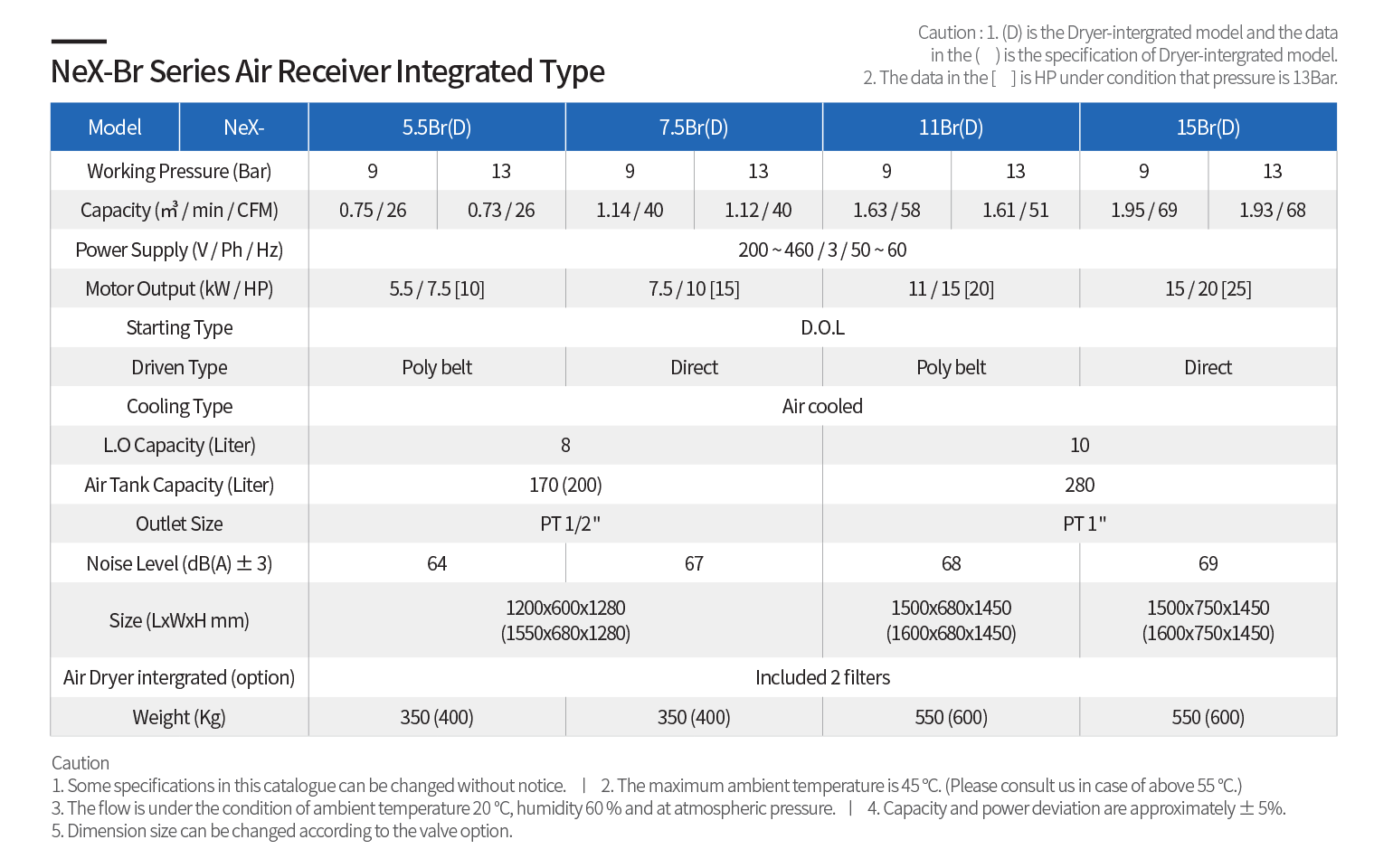

Nex-Br Series

Oil Injection Screw Compressor - Nex-Br Series

Compressor Nex-Br Series with excellent performance in noise and vibration.

  • Air tank and dryer integrated structure allows easy installation and use in small and medium-sized industrial sites
  • Driving noise is minimized by low-noise cooling pen and high-efficiency sound-absorbing materials
  • Vibration is minimized by efficient piping design and vibration proof pad.
  • Higher volumetric efficiency compared to piston method, low maintenance cost, 24 hours operation
Specifications
  • Applications
  • Output
  • Capacity
  • Working pressure
  • Cooling method
  • Drive method
  • Tank capacity
  • 5.5 ~ 15kW
    (7.5 ~ 25Hp)
  • 0.75 ~ 1.95㎥ / min
  • 9.0 ~ 13.0 bar
  • Air-cooling type
  • Motor direct connection/ Motor direct connection
  • 170L / 280L

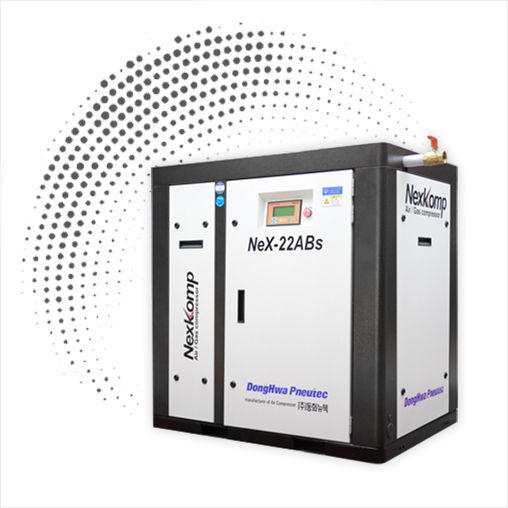

Nex-B/G Series

Oil injection screw compressor

Compressor of Nex-B/G Series with strong durability and excellent quality.

  • Driving noise is minimized by low-noise cooling pen and high-efficiency sound-absorbing materials.
  • Vibration is minimized by efficient piping design and vibration proof pad.
  • Higher volumetric efficiency compared to piston method, low maintenance cost, 24 hours operation.
Specifications
  • Applications
  • Output
  • Capacity
  • Working pressure
  • Cooling method
  • Drive method
  • Tank capacity
  • 15 ~400kW (20 ~ 540Hp)
  • 2.41 ~ 76.9㎥ / min
  • 7 ~ 13 bar
  • Air-cooling type / Water-cooling type
  • Motor direct connection
  • Star-Delta / Inverter

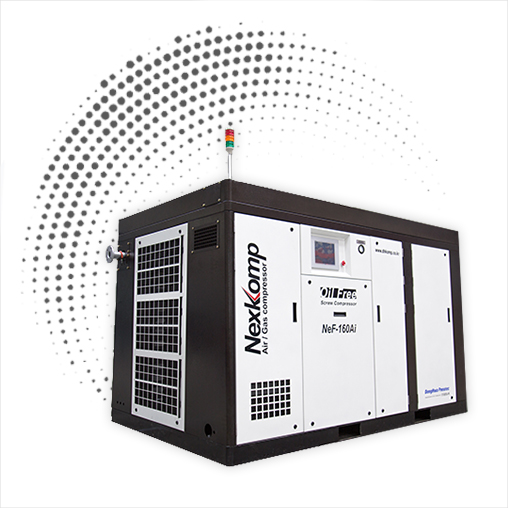

NeF Series

Oil free screw compressor

Compressor of Nex-F Series with strong durability and excellent quality.

  • A newly developed silencer is installed to minimize the high-frequency noise generated by the airend.
  • Guaranteed quiet operation by anti-friction bearings, optimized piping arrangement, and dust-proof structure design on the contact area.
  • High compression efficiency by the compression structure of the asymmetry second stainless steel rotor, and inverter for all models.
  • Ultra coating is applied to the rotor, thereby it is excellent in reliability even during long operating.
  • 10 inch large color LCD touch panel microcomputer applied.
Specifications
  • Applications
  • Output
  • Capacity
  • Working pressure
  • Cooling method
  • Drive method
  • Tank capacity
  • 37 ~ 370kW (50 ~ 565Hp)
  • 4.68 ~ 58.2㎥ / min
  • 7 ~ 10.5 bar
  • Air-cooling type / Water-cooling type
  • Motor direct connection
  • Inverter
CONTACT US

Purchasing original equipment

  • Sales Team of Dongwha Pneutec
  • A/S Team of Dongwha Pneutec
  • sales@dhkomp.co.kr
  • service@dhkomp.co.kr

Quotation and other inquiries

  • TEL
  • FAX
  • 051-974-4800
  • 051-974-4896

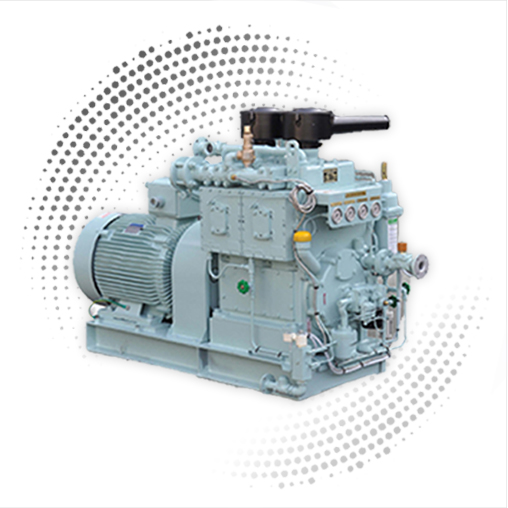

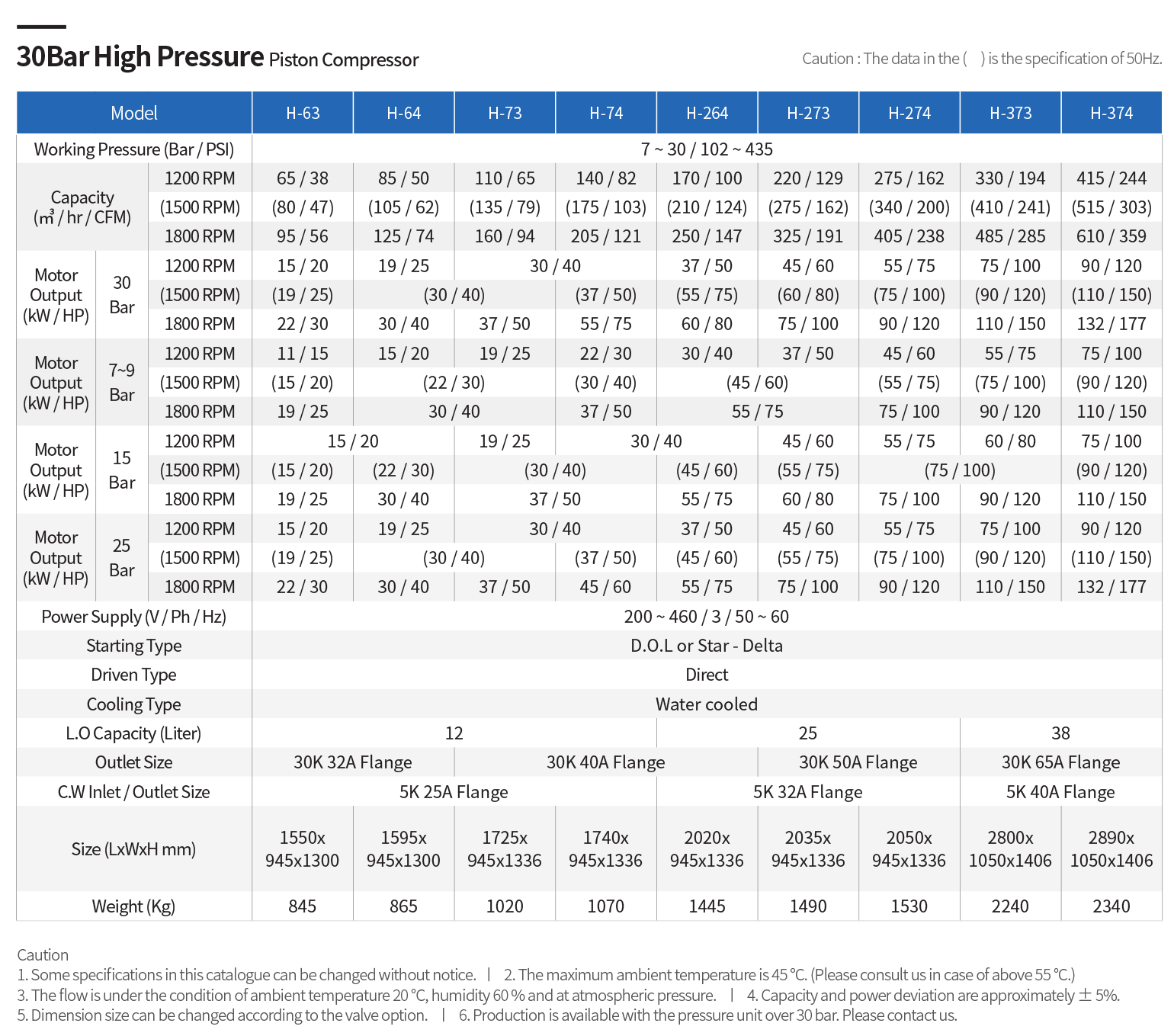

H Series

High pressure piston compressor

This is the standard compressor H Series for high-pressure compressors in Dongwha Pneutec’s specialized field.

  • Products that have been proven over a long period of time
  • Maximized the compatibility of parts by applying a module system
  • Minimized maintenance cost by long lifespan and high stability
  • Easy and convenient assembly and disassembly
Specifications
  • Applications
  • Output
  • Capacity
  • Working pressure
  • Cooling method
  • Drive method
  • Tank capacity
  • 11 ~ 132kW (15 ~ 177Hp)
  • 65 ~ 610㎥ / hr
  • 7 ~ 30 bar
  • Water-cooling type
  • Motor direct connection
  • D.O.L / Star-Delta

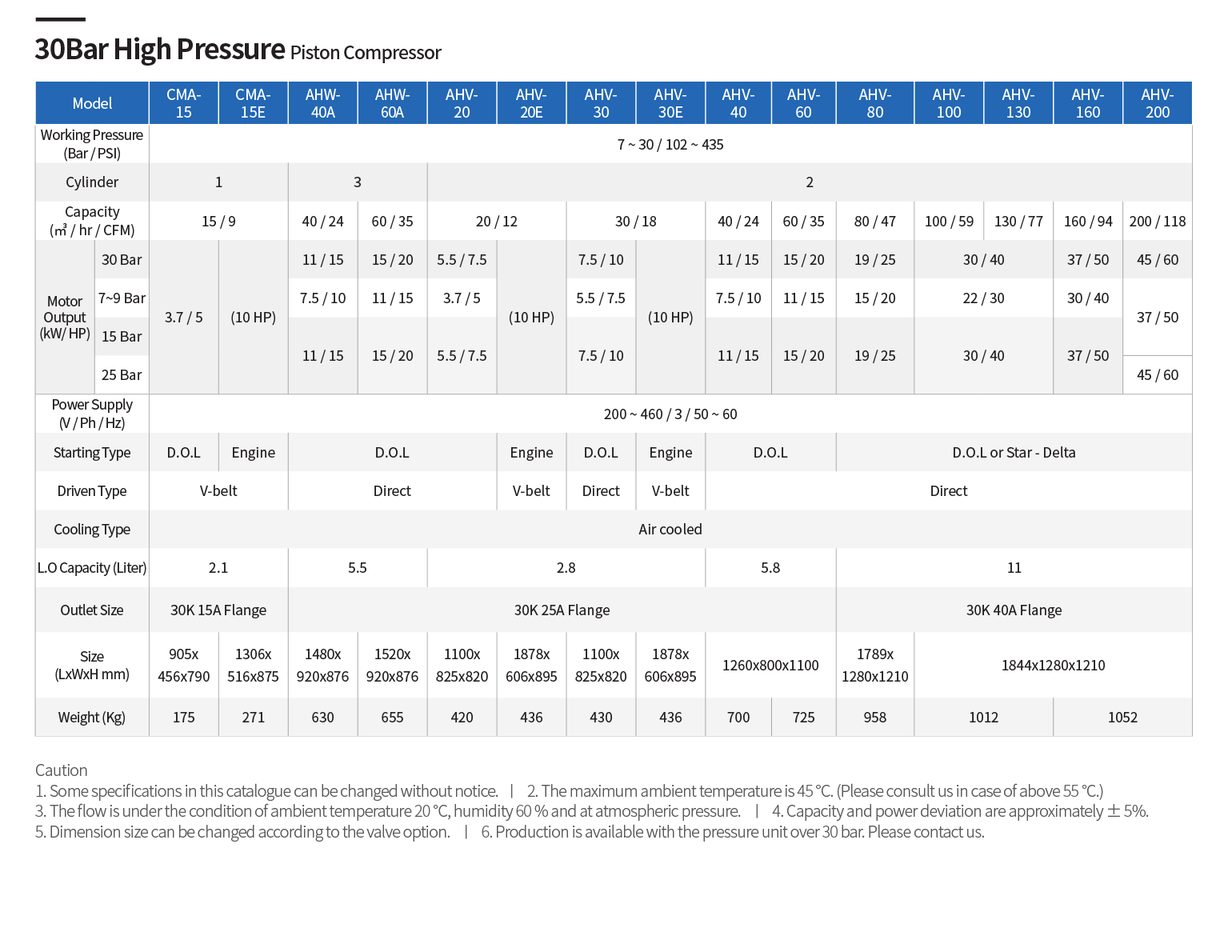

CM, AH Series

High pressure piston compressor

This is the standard compressor H Series for high-pressure compressors in Dongwha Pneutec’s specialized field.

  • Products that have been proven over a long period of time
  • Applicable for industrial sites and large ships as it has various capacities
  • Minimized maintenance cost based on long lifespan and high stability
  • Easy and convenient assembly and disassembly
Specifications
  • Applications
  • Output
  • Capacity
  • Working pressure
  • Cooling method
  • Drive method
  • Tank capacity
  • 3.7 ~ 45kW (5 ~ 60Hp)
  • 15 ~ 200㎥ / hr
  • 7 ~ 30 bar
  • Air-cooling type
  • V belt / Motor direct connection
  • D.O.L / Star-Delta

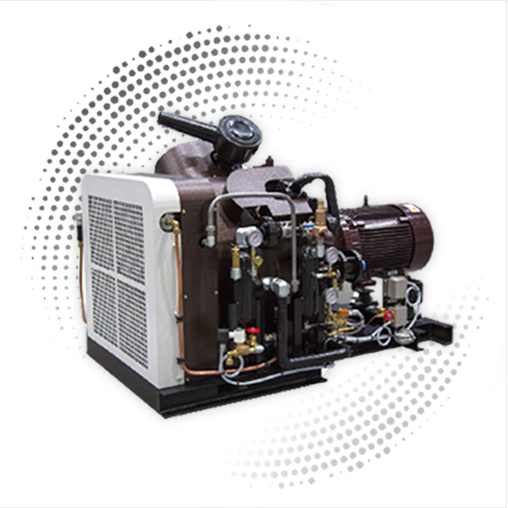

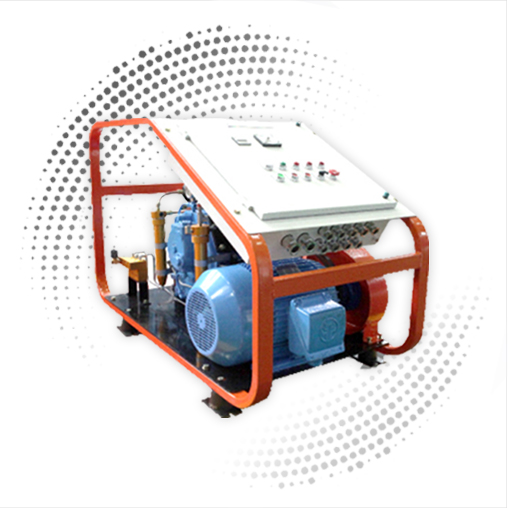

NeX-H Series

High pressure piston compressor

This is the standard compressor NeX-H Series for high pressure compressors of Dongwha Pneutec’s specialized field.

  • Used in special environments requiring ultra-high pressure
  • Optimal rotation speed, reasonable air circuit, high-efficiency motor applied
  • High reliability approved by a thorough quality inspection system
Specifications
  • Applications
  • Output
  • Capacity
  • Working pressure
  • Cooling method
  • Drive method
  • Tank capacity
  • 3.7 ~ 37kW (5 ~ 50Hp)
  • 7.3 ~ 74㎥ / hr
  • 200 ~ 350 bar
  • Air-cooling type
  • Belt
  • D.O.L / Star-Delta
